Type 3 Air Header

Type 3 Air Header

Category:

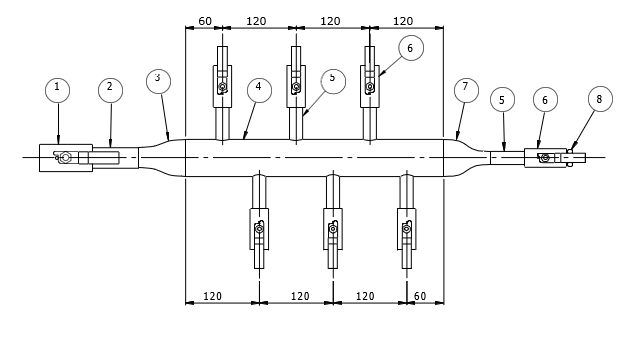

6 WAY AIR HEADER WITH 1/2"BALL VALVE

WESMEC PART NO. :- 6W16BV8BV2PS4

BILL OF MATERIAL

NO. QTY. PART RATING
1 1 BALL VALVE 1″ NPT(F) 1000 PSI
2 1 NIPPLE 1″ NPT(M) X 1″ PL 100 mm lg. SEAMLESS SCH. 40
3 1 REDUCER 2″ NB X 1″ NB SEAMLESS SCH. 40
4 1 PIPE 2″ NB SCH. 40
5 7 NIPPLE 1/2″ PL X 1/2″ NPT(M), 75 mm Lg. SEAMLESS SCH. 40
6 7 BALL VALVE 1/2″ NPT(F) 1000 PSI
7 1 REDUCER 2″ NB X 1/2″ NB SEAMLESS SCH. 40
8 1 PLUG 1/2″ NPT(M) 3000#
9 2 U – CLAMP STD.

NOTE :- NEEDLE VALVE SHALL BE PROVIDED FOR OUTLET CONNECTION AS PER REQUIREMENT

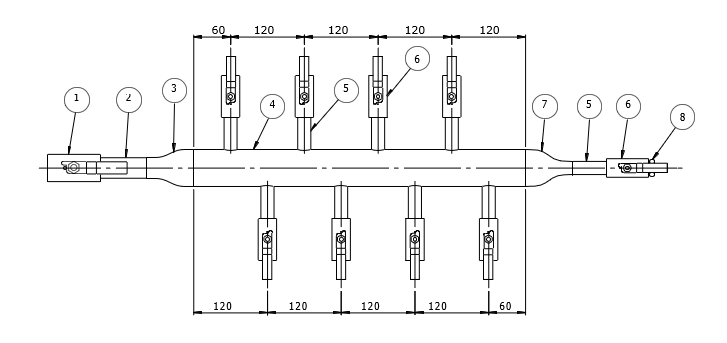

8 WAY AIR HEADER WITH 1/2" BALL VALVE

WESMEC PART NO. :- 8W16BV8BV2PS4

BILL OF MATERIAL

NO. QTY. PART RATING
1 1

BALL VALVE 1: NPT(F)

 1000 PSI
2 1

NIPPLE 1″ NPT(M) X 1″ PL, 100 mm lg. SEAMLESS

 SCH. 40
3 1

REDUCER 2″ NB X 1″ NB SEAMLESS

 SCH. 40
4 1

PIPE 2″ NB

 SCH. 40
5 9

NIPPLE 1/2″ PL X 1/2″ NPT(M), 75 mm Lg. SEAMLESS

 SCH. 40
6 9

BALL VALVE 1/2″ NPT(F)

 1000 PSI
7 1

REDUCER 2″ NB X 1/2″ NB SEAMLESS

 SCH. 40
8 1

PLUG 1/2″ NPT(M)

 3000#
9 2

U – CLAMP

 STD.

NOTE :- NEEDLE VALVE SHALL BE PROVIDED FOR OUTLET CONNECTION AS PER REQUIREMENT.

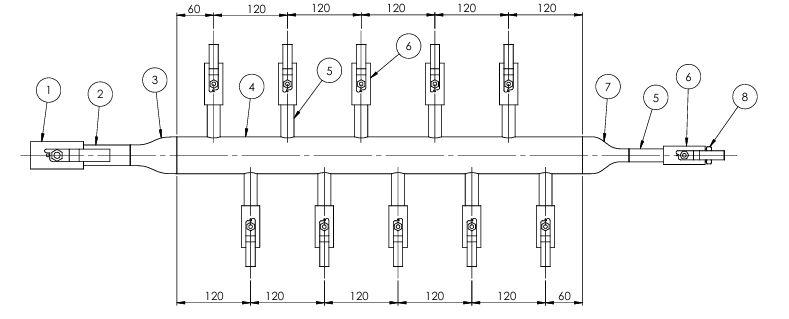

10 WAY AIR HEADER WITH 1/2" BALL VALVE

WESMEC PART NO. :- 10W16BV8BV2PS4

BILL OF MATERIAL

NO. QTY. PART RATING
1 1

BALL VALVE 1″ NPT(F)

 1000 PSI
2 1

NIPPLE 1″ NPT(M) X 1″ PL, 100 mm lg. SEAMLESS

 SCH. 40
3 1

REDUCER 2″ NB X 1″ NB SEAMLESS

 SCH. 40
4 1

PIPE 2″ NB

 SCH. 40
5 11

NIPPLE 1/2″ PL X 1/2″ NPT(M), 75 mm Lg. SEAMLESS

 SCH. 40
6 11

BALL VALVE 1/2″ NPT(F)

 1000 PSI
7 1

REDUCER 2″ NB X 1/2″ NB SEAMLESS

 SCH. 40
8 1

PLUG 1/2″ NPT(M)

 3000#
9 2

U – CLAMP

 STD.

NOTE :- NEEDLE VALVE SHALL BE PROVIDED FOR OUTLET CONNECTION AS PER REQUIREMENT.

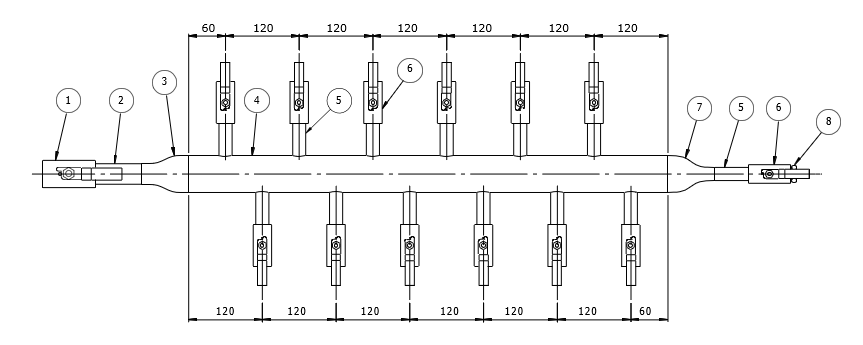

12 WAY AIR HEADER WITH 1/2" BALL VALVE

WESMEC PART NO. :- 12W16BV8BV2PS4

BILL OF MATERIAL

NO. QTY. PART RATING
1 1

BALL VALVE 1″ NPT(F)

 1000 PSI
2 1

NIPPLE 1″ NPT(M) X 1″ PL, 100 mm lg. SEAMLESS

 SCH. 40
3 1

REDUCER 2″ NB X 1″ NB SEAMLESS

 SCH. 40
4 1

PIPE 2″ NB

 SCH. 40
5 13

NIPPLE 1/2″ PL X 1/2″ NPT(M), 75 mm Lg. SEAMLESS

 SCH. 40
6 13

BALL VALVE 1/2″ NPT(F)

 1000 PSI
7 1

REDUCER 2″ NB X 1/2″ NB SEAMLESS

 SCH. 40
8 1

PLUG 1/2″ NPT(M)

 3000#
9 2

U – CLAMP

 STD.

NOTE :- NEEDLE VALVE SHALL BE PROVIDED FOR OUTLET CONNECTION AS PER REQUIREMENT.

14 WAY AIR HEADER WITH 1/2" BALL VALVE

WESMEC PART NO. :- 14W16BV8BV2PS4

BILL OF MATERIAL

NO. QTY. PART RATING
1 1

BALL VALVE 1″ NPT(F)

 1000 PSI
2 1

NIPPLE 1″ NPT(M) X 1″ PL, 100 mm lg. SEAMLESS

 SCH. 40
3 1

REDUCER 2″ NB X 1″ NB SEAMLESS

 SCH. 40
4 1

PIPE 2″ NB

 SCH. 40
5 15

NIPPLE 1/2″ PL X 1/2″ NPT(M), 75 mm Lg. SEAMLESS

 SCH. 40
6 15

BALL VALVE 1/2″ NPT(F)

 1000 PSI
7 1

REDUCER 2″ NB X 1/2″ NB SEAMLESS

 SCH. 40
8 1

PLUG 1/2″ NPT(M)

 3000#
9 2

U – CLAMP

 STD.

NOTE :- NEEDLE VALVE SHALL BE PROVIDED FOR OUTLET CONNECTION AS PER REQUIREMENT.

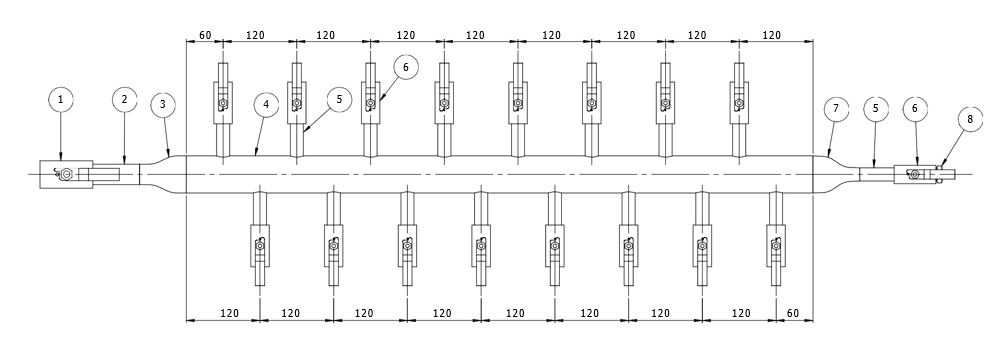

16 WAY AIR HEADER WITH 1/2" BALL VALVE

WESMEC PART NO. :- 16W16BV8BV2PS4

BILL OF MATERIAL

NO. QTY. PART RATING
1 1

BALL VALVE 1″ NPT(F)

 1000 PSI
2 1

NIPPLE 1″ NPT(M) X 1″ PL, 100 mm lg. SEAMLESS

 SCH. 40
3 1

REDUCER 2″ NB X 1″ NB SEAMLESS

 SCH. 40
4 1

PIPE 2″ NB

 SCH. 40
5 17

NIPPLE 1/2″ PL X 1/2″ NPT(M), 75 mm Lg. SEAMLESS

 SCH. 40
6 17

BALL VALVE 1/2″ NPT(F)

 1000 PSI
7 1

REDUCER 2″ NB X 1/2″ NB SEAMLESS

 SCH. 40
8 1

PLUG 1/2″ NPT(M)

 3000#
9 2

U – CLAMP

 STD.



NOTE :- NEEDLE VALVE SHALL BE PROVIDED FOR OUTLET CONNECTION AS PER REQUIREMENT.

6 WAY AIR HEADER WITH 1/4" BALL VALVE

WESMEC PART NO. :- 6W16BV4BV2PS4

BILL OF MATERIAL

NO. QTY. PART RATING
1 1

BALL VALVE 1″ NPT(F)

 1000 PSI
2 1

NIPPLE 1″ NPT(M) X 1″ PL, 100 mm lg. SEAMLESS

 SCH. 40
3 1

REDUCER 2″ NB X 1″ NB SEAMLESS

 SCH. 40
4 1

PIPE 2″ NB

 SCH. 40
5 6

NIPPLE 1/4″ PL X 1/4″ NPT(M), 75 mm Lg. SEAMLESS

 SCH. 40
6 6

BALL VALVE 1/4″ NPT(F)

 1000 PSI
7 1

REDUCER 2″ NB X 1/2″ NB SEAMLESS

 SCH. 40
8 1

NIPPLE 1/2″ PL X 1/2″ NPT(M), 75 mm lg. SEAMLESS

 SCH. 40
9 1

BALL VALVE 1/2″ NPT(F)

 1000 PSI
10 1

PLUG 1/2″ NPT(M)

 3000#
11 2

U – CLAMP

 STD.

NOTE :- NEEDLE VALVE SHALL BE PROVIDED FOR OUTLET CONNECTION AS PER REQUIREMENT.

8 WAY AIR HEADER WITH 1/4" BALL VALVE

WESMEC PART NO. :- 8W16BV4BV2PS4

BILL OF MATERIAL

NO. QTY. PART RATING
1 1

BALL VALVE 1″ NPT(F)

 1000 PSI
2 1

NIPPLE 1″ NPT(M) X 1″ PL, 100 mm lg. SEAMLESS

 SCH. 40
3 1

REDUCER 2″ NB X 1″ NB SEAMLESS

 SCH. 40
4 1

PIPE 2″ NB

 SCH. 40
5 8

NIPPLE 1/4″ PL X 1/4″ NPT(M), 75 mm Lg. SEAMLESS

 SCH. 40
6 8

BALL VALVE 1/4″ NPT(F)

 1000 PSI
7 1

REDUCER 2″ NB X 1/2″ NB SEAMLESS

 SCH. 40
8 1

NIPPLE 1/2″ PL X 1/2″ NPT(M), 75 mm lg. SEAMLESS

 SCH. 40
9 1

BALL VALVE 1/2″ NPT(F)

 1000 PSI
10 1

PLUG 1/2″ NPT(M)

 3000#
11 2

U – CLAMP

 STD.

NOTE :- NEEDLE VALVE SHALL BE PROVIDED FOR OUTLET CONNECTION AS PER REQUIREMENT.

10 WAY AIR HEADER WITH 1/4" BALL VALVE

WESMEC PART NO. :- 10W16BV4BV2PS4

BILL OF MATERIAL

NO. QTY. PART RATING
1 1

BALL VALVE 1″ NPT(F)

 1000 PSI
2 1

NIPPLE 1″ NPT(M) X 1″ PL, 100 mm lg. SEAMLESS

 SCH. 40
3 1

REDUCER 2″ NB X 1″ NB SEAMLESS

 SCH. 40
4 1

PIPE 2″ NB

 SCH. 40
5 10

NIPPLE 1/4″ PL X 1/4″ NPT(M), 75 mm Lg. SEAMLESS

 SCH. 40
6 10

BALL VALVE 1/4″ NPT(F)

 1000 PSI
7 1

REDUCER 2″ NB X 1/2″ NB SEAMLESS

 SCH. 40
8 1

NIPPLE 1/2″ PL X 1/2″ NPT(M), 75 mm lg. SEAMLESS

 SCH. 40
9 1

BALL VALVE 1/2″ NPT(F)

 1000 PSI
10 1

PLUG 1/2″ NPT(M)

 3000#
11 2

U – CLAMP

 STD.

NOTE :- NEEDLE VALVE SHALL BE PROVIDED FOR OUTLET CONNECTION AS PER REQUIREMENT.

12 WAY AIR HEADER WITH 1/4" BALL VALVE

WESMEC PART NO. :- 12W16BV4BV2PS4

BILL OF MATERIAL

NO. QTY. PART RATING
1 1

BALL VALVE 1″ NPT(F)

 1000 PSI
2 1

NIPPLE 1″ NPT(M) X 1″ PL, 100 mm lg. SEAMLESS

 SCH. 40
3 1

REDUCER 2″ NB X 1″ NB SEAMLESS

 SCH. 40
4 1

PIPE 2″ NB

 SCH. 40
5 12

NIPPLE 1/4″ PL X 1/4″ NPT(M), 75 mm Lg. SEAMLESS

 SCH. 40
6 12

BALL VALVE 1/4″ NPT(F)

 1000 PSI
7 1

REDUCER 2″ NB X 1/2″ NB SEAMLESS

 SCH. 40
8 1

NIPPLE 1/2″ PL X 1/2″ NPT(M), 75 mm lg. SEAMLESS

 SCH. 40
9 1

BALL VALVE 1/2″ NPT(F)

 1000 PSI
10 1

PLUG 1/2″ NPT(M)

 3000#
11 2

U – CLAMP

 STD.

NOTE :- NEEDLE VALVE SHALL BE PROVIDED FOR OUTLET CONNECTION AS PER REQUIREMENT.

14 WAY AIR HEADER WITH 1/4" BALL VALVE

WESMEC PART NO. :- 14W16BV4BV2PS4

BILL OF MATERIAL

NO. QTY. PART RATING
1 1

BALL VALVE 1″ NPT(F)

 1000 PSI
2 1

NIPPLE 1″ NPT(M) X 1″ PL, 100 mm lg. SEAMLESS

 SCH. 40
3 1

REDUCER 2″ NB X 1″ NB SEAMLESS

 SCH. 40
4 1

PIPE 2″ NB

 SCH. 40
5 14

NIPPLE 1/4″ PL X 1/4″ NPT(M), 75 mm Lg. SEAMLESS

 SCH. 40
6 14

BALL VALVE 1/4″ NPT(F)

 1000 PSI
7 1

REDUCER 2″ NB X 1/2″ NB SEAMLESS

 SCH. 40
8 1

NIPPLE 1/2″ PL X 1/2″ NPT(M), 75 mm lg. SEAMLESS

 SCH. 40
9 1

BALL VALVE 1/2″ NPT(F)

 1000 PSI
10 1

PLUG 1/2″ NPT(M)

 3000#
11 2

U – CLAMP

 STD.

NOTE :- NEEDLE VALVE SHALL BE PROVIDED FOR OUTLET CONNECTION AS PER REQUIREMENT.

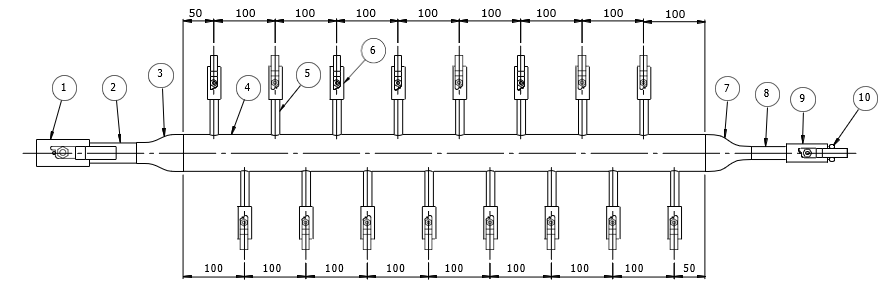

16 WAY AIR HEADER WITH 1/4" BALL VALVE

WESMEC PART NO. :- 16W16BV4BV2PS4

BILL OF MATERIAL

NO. QTY. PART RATING
1 1

BALL VALVE 1″ NPT(F)

 1000 PSI
2 1

NIPPLE 1″ NPT(M) X 1″ PL, 100 mm lg. SEAMLESS

 SCH. 40
3 1

REDUCER 2″ NB X 1″ NB SEAMLESS

 SCH. 40
4 1

PIPE 2″ NB

 SCH. 40
5 16

NIPPLE 1/4″ PL X 1/4″ NPT(M), 75 mm Lg. SEAMLESS

 SCH. 40
6 16

BALL VALVE 1/4″ NPT(F)

 1000 PSI
7 1

REDUCER 2″ NB X 1/2″ NB SEAMLESS

 SCH. 40
8 1

NIPPLE 1/2″ PL X 1/2″ NPT(M), 75 mm lg. SEAMLESS

 SCH. 40
9 1

BALL VALVE 1/2″ NPT(F)

 1000 PSI
10 1

PLUG 1/2″ NPT(M)

 3000#
11 2

U – CLAMP

 STD.

NOTE :- NEEDLE VALVE SHALL BE PROVIDED FOR OUTLET CONNECTION AS PER REQUIREMENT.
