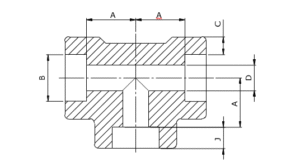

c.EQUAL TEE, NBSW, 3000#, 6000#, 9000#

3000#

NOM PIPE SIZE	SOCKET BORE DIA B	BORE DIA OF FITTING D	SOCKET WALL THICKNESS C		DEPTH OF SOCKET MIN J	CENTER TOBOTTOM OF SOCKET A	PART No.
		3000	3000			3000
			Ave.	Min.
1/8" SW	10.9	7.6	3.2	3.2	10	12	2SWT3K#
	10.65	6.1				10
1/4" SW	14.35	10	3.8	3.3	10	12	4SWT3K#
	14.1	8.5				10
3/8" SW	17.8	13.3	4	3.5	10	15	6SWT3K#
	17.55	11.8				12
1/2" SW	21.95	16.6	4.65	4.1	10	17	8SWT3K#
	21.7	15				14
3/4" SW	27.3	21.7	4.9	4.25	13	21	12SWT3K#
	27.05	20.2				18
1" SW	34.05	27.4	5.7	5	13	24	16SWT3K#
	33.8	25.9				20
1.1/4" SW	42.8	35.8	6.05	5.3	13	29	20SWT3K#
	42.55	34.3				25
1.1/2" SW	48.9	41.7	6.35	5.55	13	34	24SWT3K#
	48.65	40.1				30
2" SW	61.35	53.5	6.95	6.05	16	40	32SWT3K#
	61.1	51.7				36
2.1/2" SW	74.2	64.2	8.75	7.65	16	44	36SWT3K#
	73.8	61.2				39
3" SW	90.15	79.5	9.5	8.3	16	60	48SWT3K#
	89.8	79.4				55
4" SW	115.8	103.8	10.7	9.35	19	69	64SWT3K#
	115.45	100.7				64

6000#

NOM PIPE SIZE	SOCKET BORE DIA B	BORE DIA OF FITTING D	SOCKET WALL THICKNESS C		DEPTH OF SOCKET MIN J	CENTER TOBOTTOM OF SOCKET A	PART No.
		6000	6000			6000
			Ave.	Min.
1/8" SW	10.9	4.8	3.95	3.45	10	12	2SWT6K#
	10.65	3.2				10
1/4" SW	14.35	7.1	4.6	4	10	17	4SWT6K#
	14.1	5.6				13
3/8" SW	17.8	9.9	5.05	4.35	10	17	6SWT6K#
	17.55	8.4				14
1/2" SW	21.95	12.5	5.95	5.2	10	21	8SWT6K#
	21.7	11				18
3/4" SW	27.3	16.3	6.95	6.05	13	24	12SWT6K#
	27.05	14.8				21
1" SW	34.05	21.5	7.9	6.95	13	29	16SWT6K#
	33.8	19.9				25
1.1/4" SW	42.8	30.2	7.9	6.95	13	34	20SWT6K#
	42.55	28.7				30
1.1/2" SW	48.9	34.7	8.9	7.8	13	40	24SWT6K#
	48.65	33.2				36
2" SW	61.35	43.6	10.9	9.5	16	43	32SWT6K#
	61.1	42.1				39
2.1/2" SW	74.2	-	-	-	16	-	36SWT6K#
	73.8
3" SW	90.15	-	-	-	16	-	48SWT6K#
	89.8
4" SW	115.8	-	-	-	19	-	64SWT6K#
	115.45

9000#

NOM PIPE SIZE	SOCKET BORE DIA B	BORE DIA OF FITTING D	SOCKET WALL THICKNESS C		DEPTH OF SOCKET MIN J	CENTER TOBOTTOM OF SOCKET A	PART No.
		9000	9000			9000
			Ave.	Min.
1/8" SW	10.9	-	-	-	10	-	2SWT9K#
	10.65	-				-
1/4" SW	14.35	-	-	-	10	-	4SWT9K#
	14.1	-				-
3/8" SW	17.8	-	-	-	10	-	6SWT9K#
	17.55	-				-
1/2" SW	21.95	7.2	9.35	8.2	10	27	8SWT9K#
	21.7	5.6				24
3/4" SW	27.3	11.8	9.8	8.55	13	30	12SWT9K#
	27.05	10.3				27
1" SW	34.05	16	11.4	9.95	13	34	16SWT9K#
	33.8	14.5				30
1.1/4" SW	42.8	23.5	12.15	10.6	13	37	20SWT9K#
	42.55	22				33
1.1/2" SW	48.9	28.7	12.7	11.15	13	40	24SWT9K#
	48.65	27.2				36
2" SW	61.35	38.9	13.85	12.15	16	56	32SWT9K#
	61.1	37.4				52
2.1/2" SW	74.2	-	-	-	16	-	36SWT9K#
	73.8	-				-
3" SW	90.15	-	-	-	16	-	48SWT9K#
	89.8	-				-
4" SW	115.8	-	-	-	19	-	64SWT9K#
	115.45	-				-
