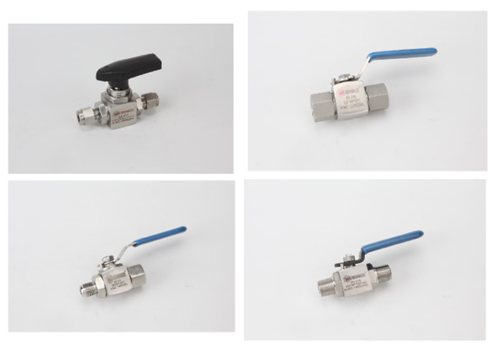

b.2 WAY BALL VALVE

b.2 WAY BALL VALVE

b.2 WAY BALL VALVE

Application: It is used in many hydrocarbon process applications. It is used for throttling gases and vapors and especially for low flow situations. It is used for directional change. It is used for isolating the flow.

Special requirements available on request.

Category: BALL VALVES

Description

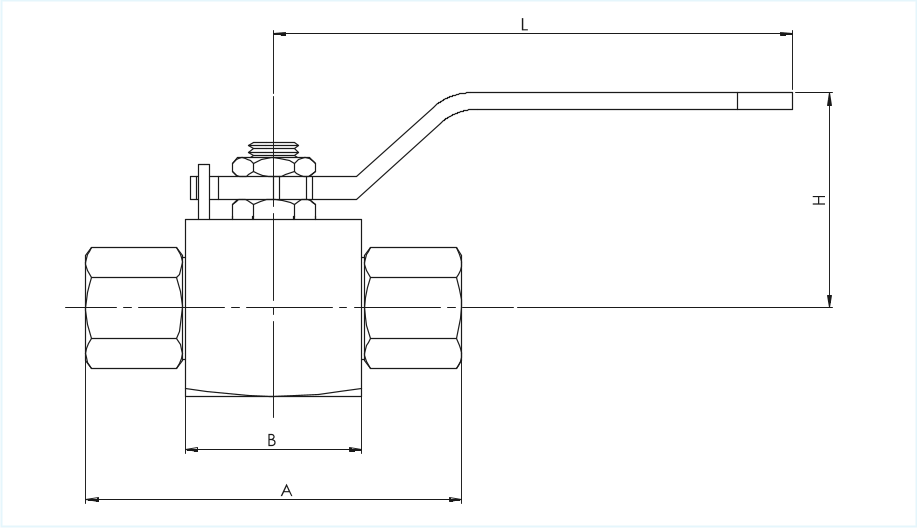

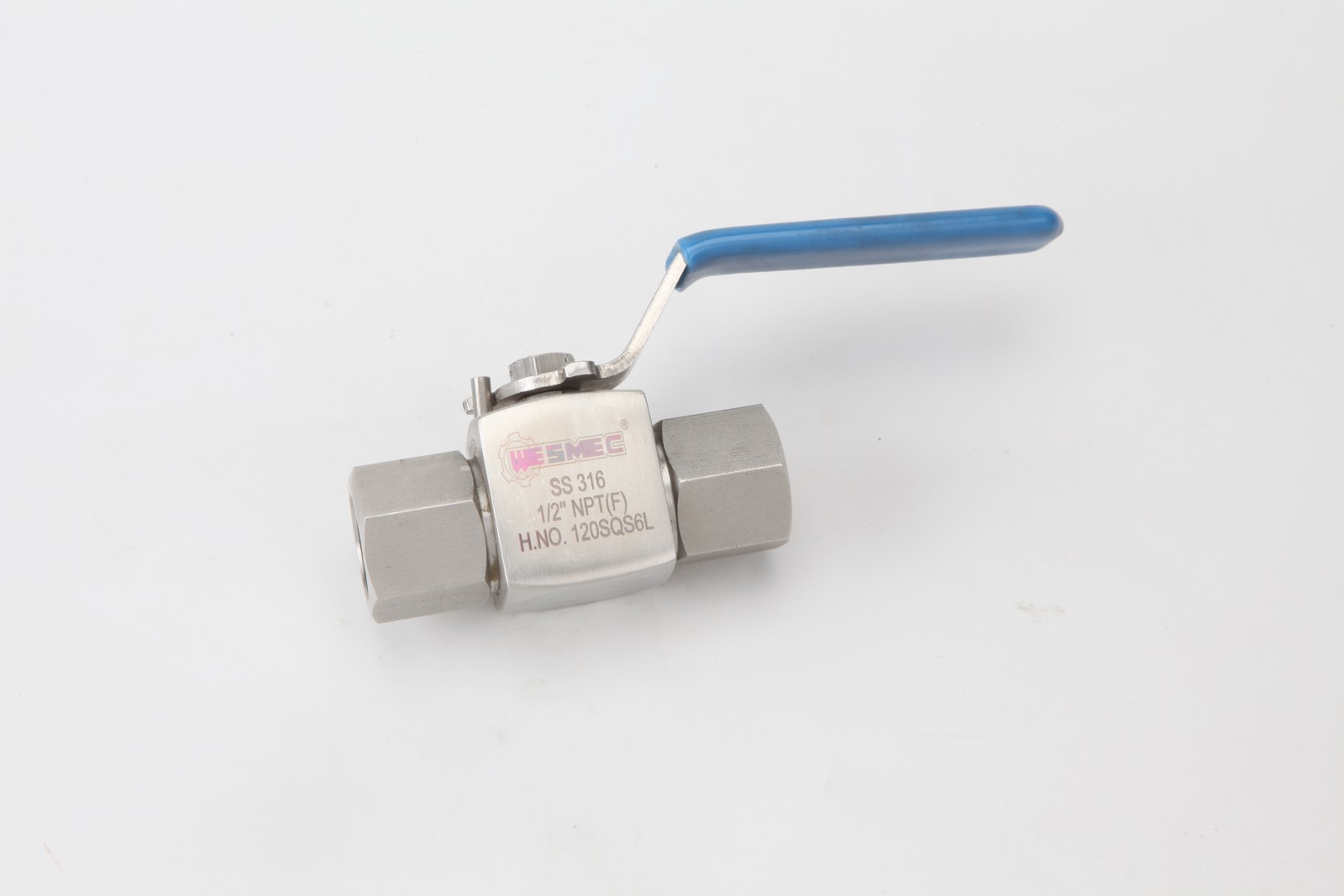

2 WAY BALL VALVE NPT(F) CONNECTION

SIZE	PORT	A	B	H	L	TEST PRESSURE	PART No.
1/4″ NPT(F)	4.8	66	28	43	85	3000 PSI	4BVF-SQB
3/8″ NPT(F)	4.8	66	28	43	85	3000 PSI	6BVF-SQB
1/2″ NPT(F)	10	90	36	50	110	3000 PSI	8BVF-SQB
3/4″ NPT(F)	12	94	36	51	110	3000 PSI	12BVF-SQB
1″ NPT(F)	19	110	50	57	130	3000 PSI	16BVF-SQB

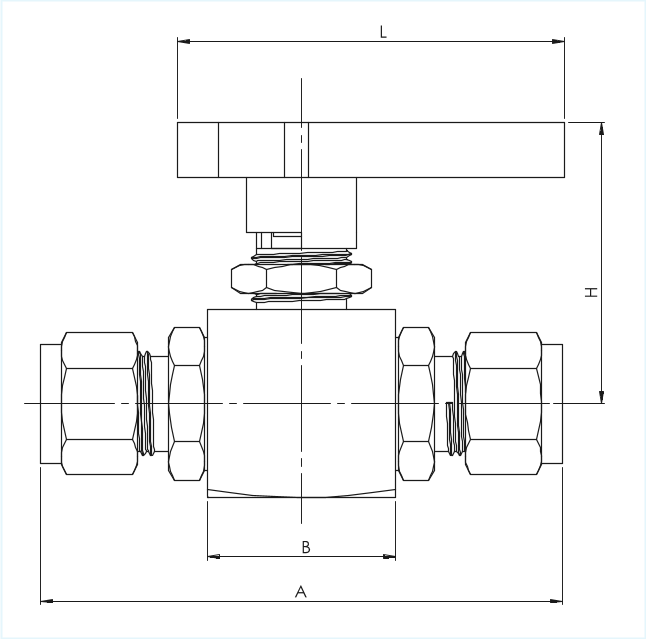

2 WAY BALL VALVE TUBE OD CONNECTION

SIZE	PORT	A	B	H	L	TEST PRESSURE	PART No.
1/4″ OD	4.8	77	25.4	43	66	3000 PSI	4BVOD-SQB
3/8″ OD	4.8	84	25.4	43	66	3000 PSI	6BVOD-SQB
1/2″ OD	8.5	93	32	48	90	3000 PSI	8BVOD-SQB
3/4″ OD	14	95	36	50	90	3000 PSI	12BVOD-SQB
1″ OD	16	110	45	55	100	3000 PSI	16BVOD-SQB

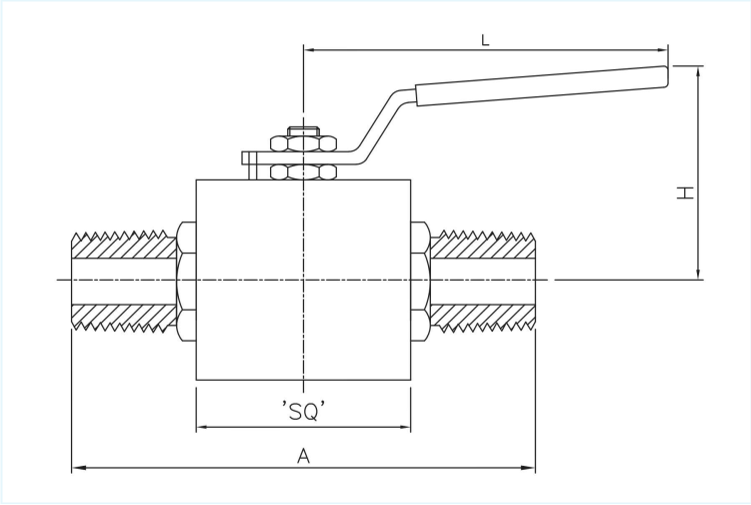

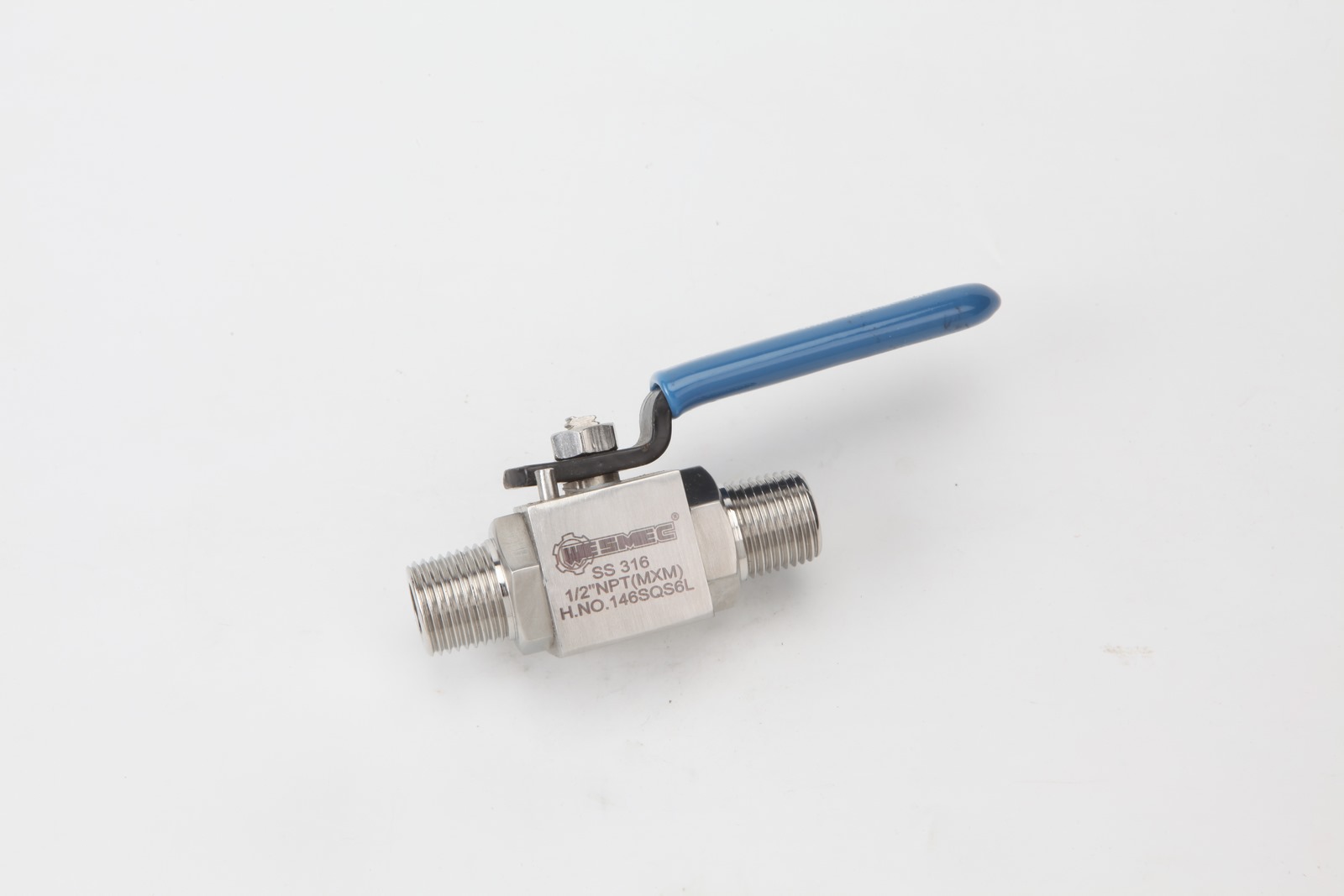

2 WAY BALL VALVE NPT MALE CONNECTION

SIZE	PORT	A	SQ	H	L	TEST PRESSURE	PART No.
1/4″ NPT(M)	4.8	70	28	43	85	3000 PSI	4BVM-SQB
3/8″ NPT(M)	4.8	70	28	43	85	3000 PSI	6BVM-SQB
1/2″ NPT(M)	10	90	36	50	110	3000 PSI	8BVM-SQB
3/4″ NPT(M)	12	90	36	51	110	3000 PSI	12BVM-SQB
1″ NPT(M)	19	120	50	57	130	3000 PSI	16BVM-SQB

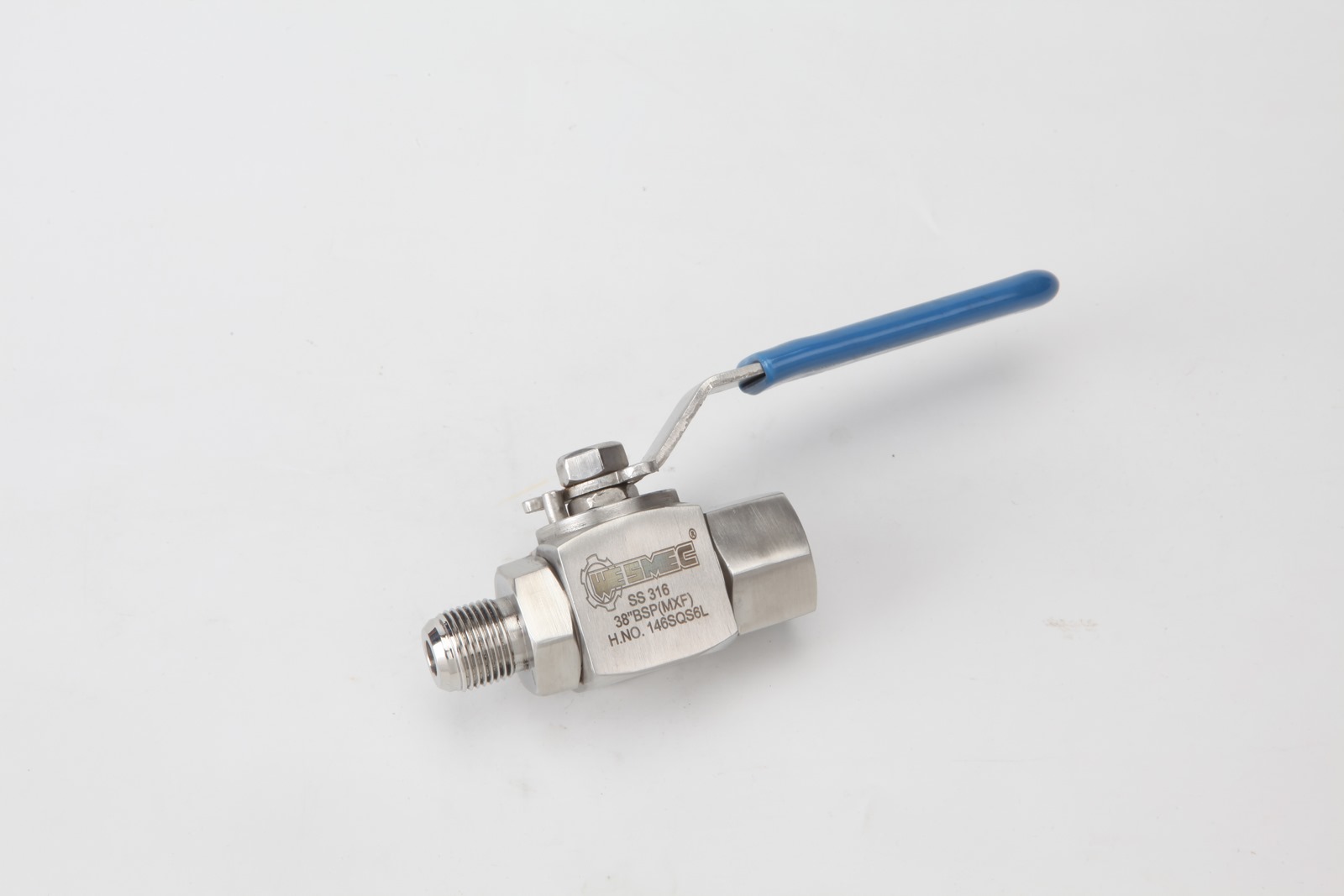

2 WAY BALL VALVE NPT M X F CONNECTION

SIZE	PORT	A	SQ	H	L	TEST PRESSURE	PART No.
1/4″ NPT(M) X (F)	4.8	70	28	43	85	3000 PSI	4BVMF-SQB
3/8″ NPT(M) X (F)	4.8	70	28	43	85	3000 PSI	6BVMF-SQB
1/2″ NPT(M) X (F)	10	90	36	50	110	3000 PSI	8BVMF-SQB
3/4″ NPT(M) X (F)	14	90	36	51	110	3000 PSI	12BVMF-SQB
1″ NPT(M) X (F)	19	120	50	57	130	3000 PSI	16BVMF-SQB

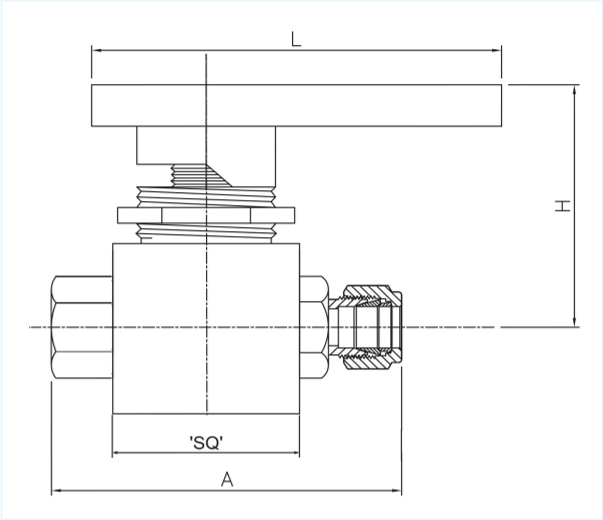

2 WAY BALL VALVE NPT F X OD CONNECTION

SIZE	PORT	A	SQ	H	L	TEST PRESSURE	PART No.
1/4″ NPT(F) X OD	4.8	78	25.4	43	66	3000 PSI	4BVFOD-SQB
3/8″ NPT(F) X OD	4.8	85	25.4	43	66	3000 PSI	6BVFOD-SQB
1/2″ NPT(F) X OD	8.5	95	32	48	90	3000 PSI	8BVFOD-SQB
3/4″ NPT(F) X OD	12	95	36	50	90	3000 PSI	12BVFOD-SQB
1″ NPT(F) X OD	16	110	45	55	100	3000 PSI	16BVFOD-SQB

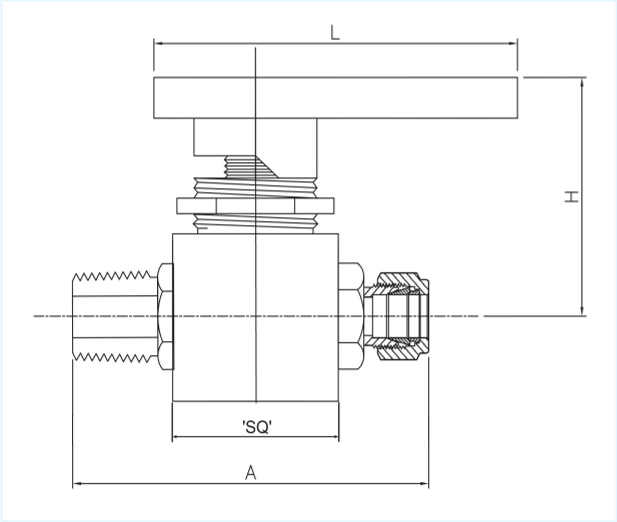

2 WAY BALL VALVE NPT M X OD CONNECTION

SIZE	PORT	A	SQ	H	L	TEST PRESSURE	PART No.
1/4″ NPT(M) X OD	4.8	78	25.4	43	66	3000 PSI	4BVMOD-SQB
3/8″ NPT(M) X OD	4.8	85	25.4	43	66	3000 PSI	6BVMOD-SQB
1/2″ NPT(M) X OD	8.5	95	32	48	90	3000 PSI	8BVMOD-SQB
3/4″ NPT(M) X OD	12	95	36	50	90	3000 PSI	12BVMOD-SQB
1″ NPT(M) X OD	16	110	45	55	100	3000 PSI	16BVMOD-SQB
