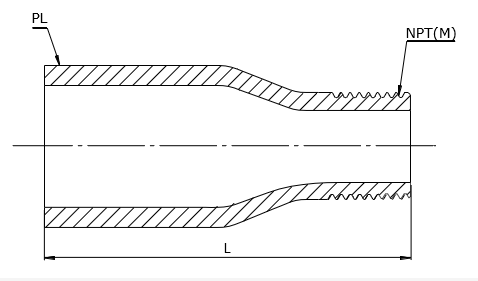

SWAGE NIPPLE (NBPL X NPTM)

Application: To reduce the diameter of straight run of pipe. They are available in Concentric and Eccentric shape.

*Eccentric Swage Nipples must be installed with its Flat Side Up (FSU) or Flat Side Down (FSD) to prevent formation of air bubbles/pockets (cavitation)*

Special requirements available on request.

SWAGE NIPPLE NB PL X TH :-

SIZE L – 2″ LONG
2″ NB PL X 1″ NPT(M) NIPPLE
2″ NB PL X 3/4″ NPT(M) NIPPLE
2″ NB PL X 1/2″ NPT(M) NIPPLE

SIZE L – 3″ LONG
2″ NB PL X 1″ NPT(M) NIPPLE
2″ NB PL X 3/4″ NPT(M) NIPPLE
2″ NB PL X 1/2″ NPT(M) NIPPLE

SIZE L – 4″ LONG
2″ NB PL X 1″ NPT(M) NIPPLE
2″ NB PL X 3/4″ NPT(M) NIPPLE
2″ NB PL X 1/2″ NPT(M) NIPPLE

SIZE L – 6″ LONG
2″ NB PL X 1″ NPT(M) NIPPLE
2″ NB PL X 3/4″ NPT(M) NIPPLE
2″ NB PL X 1/2″ NPT(M) NIPPLE

SWAGE NIPPLE NB PL X TH :-

SIZE L -2″ LONG
1″ NB PL X 3/4″ NPT(M) NIPPLE
1″ NB PL X 1/2″ NPT(M) NIPPLE
1″ NB PL X 3/8″ NPT(M) NIPPLE

SIZE L -3″ LONG
1″ NB PL X 3/4″ NPT(M) NIPPLE
1″ NB PL X 1/2″ NPT(M) NIPPLE
1″ NB PL X 3/8″ NPT(M) NIPPLE

SIZE L -4″ LONG
1″ NB PL X 3/4″ NPT(M) NIPPLE
1″ NB PL X 1/2″ NPT(M) NIPPLE
1″ NB PL X 3/8″ NPT(M) NIPPLE

SIZE L -6″ LONG
1″ NB PL X 3/4″ NPT(M)L NIPPLE
1″ NB PL X 1/2″ NPT(M) NIPPLE
1″ NB PL X 3/8″ NPT(M) NIPPLE

SWAGE NIPPLE NB PL X TH:-

SIZE L – 2″ LONG
3/4″ NB PL X 1/2″ NPT(M) NIPPLE
3/4″ NB PL X 3/8″ NPT(M)NIPPLE
3/4″ NB PL X 1/4″NPT(M)NIPPLE

SIZE L – 3″ LONG
3/4″ NB PL X 1/2″ NPT(M) NIPPLE
3/4″ NB PL X 3/8″NPT(M) NIPPLE
3/4″ NB PL X 1/4″ NPT(M) NIPPLE

SIZE L – 4″ LONG
3/4″ NB PL X 1/2″ NPT(M) NIPPLE
3/4″ NB PL X 3/8″ NPT(M) NIPPLE
3/4″ NB PL X 1/4″ NPT(M) NIPPLE

SIZE L – 6″ LONG
3/4″ NB PL X 1/2″ NPT(M) NIPPLE
3/4″ NB PL X 3/8″ NPT(M) NIPPLE
3/4″ NB PL X 1/4″ NPT(M) NIPPLE

SWAGE NIPPLE NB PL X TH) :-

SIZE L -2″ LONG
1/2″ NB PL X 3/8″ NPT(M) NIPPLE
1/2″ NB PL X 1/4″ NPT(M) NIPPLE

SIZE L -3″ LONG
1/2″ NB PL X 3/8″ NPT(M) NIPPLE
1/2″ NB PL X 1/4″NPT(M) NIPPLE

SIZE L -4″ LONG
1/2″ NB PL X 3/8″NPT(M) NIPPLE
1/2″ NB PL X 1/4″ NPT(M) NIPPLE

SIZE L -6″ LONG
1/2″ NB PL X 3/8″ NPT(M) NIPPLE
1/2″ NB PL X 1/4″ NPT(M) NIPPLE
