| WESMEC PART NO. | PIPE SIZE | DIMENSIONS | WORKING PRESSURE (PSIG) | |||||
|---|---|---|---|---|---|---|---|---|
| FEMALE | RED. MALE | L | S | E | W | BRASS | SS 316 | |
| 6RSLP4 | 3/8" | 1/4" | 25 | 27 | 7 | 22 | 2300 | 3700 |
| 8RSLP4 | 1/2" | 1/4" | 31 | 29 | 7 | 27 | 2200 | 3500 |
| 8RSLP6 | 1/2" | 3/8" | 31 | 29 | 9.5 | 27 | 3600 | 5600 |

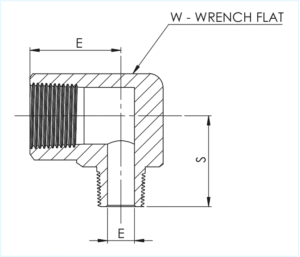

n. RSLP REDUCING STREET ELBOW (FEMALE NPT REDUCED MALE NPT)
