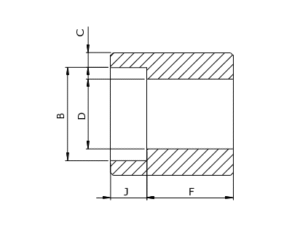

f.HALF COUPLING, NBSW, 3000#, 6000#, 9000#

3000#

NOM PIPE SIZE	SOCKET BORE DIA B	BORE DIA OF FITTING D	SOCKET WALL THICKNESS C		DEPTH OF SOCKET MIN J	LAYING LENGTHS & COUPLING F	PART No.
		3000	3000			3000
			Ave.	Min.
1/8" SW	10.9	7.6	3.2	3.2	10	17	2SWHCG3K#
	10.65	6.1				15
1/4" SW	14.35	10	3.8	3.3	10	17	4SWHCG3K#
	14.1	8.5				15
3/8" SW	17.8	13.3	4	3.5	10	19	6SWHCG3K#
	17.55	11.8				16
1/2" SW	21.95	16.6	4.65	4.1	10	24	8SWHCG3K#
	21.7	15				21
3/4" SW	27.3	21.7	4.9	4.25	13	25	12SWHCG3K#
	27.05	20.2				22
1" SW	34.05	27.4	5.7	5	13	31	16SWHCG3K#
	33.8	25.9				27
1.1/4" SW	42.8	35.8	6.05	5.3	13	32	20SWHCG3K#
	42.55	34.3				28
1.1/2" SW	48.9	41.7	6.35	5.55	13	34	24SWHCG3K#
	48.65	40.1				30
2" SW	61.35	53.5	6.95	6.05	16	43	32SWHCG3K#
	61.1	51.7				49
2.1/2" SW	74.2	64.2	8.75	7.65	16	45	36SWHCG3K#
	73.8	61.2				40
3" SW	90.15	79.5	9.5	8.3	16	47	48SWHCG3K#
	89.8	79.4				42
4" SW	115.8	103.8	10.7	9.35	19	50	64SWHCG3K#
	115.45	100.7				45

6000#

NOM PIPE SIZE	SOCKET BORE DIA B	BORE DIA OF FITTING D	SOCKET WALL THICKNESS C		DEPTH OF SOCKET MIN J	LAYING LENGTHS & COUPLING F	PART No.
		6000	6000			6000
1/8" SW	10.9	4.8	3.95	3.45	10	17	2SWHCG6K#
	10.65	3.2				15
1/4" SW	14.35	7.1	4.6	4	10	17	4SWHCG6K#
	14.1	5.6				15
3/8" SW	17.8	9.9	5.05	4.35	10	19	6SWHCG6K#
	17.55	8.4				16
1/2" SW	21.95	12.5	5.95	5.2	10	24	8SWHCG6K#
	21.7	11				21
3/4" SW	27.3	16.3	6.95	6.05	13	25	12SWHCG6K#
	27.05	14.8				22
1" SW	34.05	21.5	7.9	6.95	13	31	16SWHCG6K#
	33.8	19.9				27
1.1/4" SW	42.8	30.2	7.9	6.95	13	32	20SWHCG6K#
	42.55	28.7				28
1.1/2" SW	48.9	34.7	8.9	7.8	13	34	24SWHCG6K#
	48.65	33.2				30
2" SW	61.35	43.6	10.9	9.5	16	43	32SWHCG6K#
	61.1	42.1				49
2.1/2" SW	74.2	-	-	-	16	45	36SWHCG6K#
	73.8					40
3" SW	90.15	-	-	-	16	47	48SWHCG6K#
	89.8					42
4" SW	115.8	-	-	-	19	50	64SWHCG6K#
	115.45					45

9000#

NOM PIPE SIZE	SOCKET BORE DIA B	BORE DIA OF FITTING D	SOCKET WALL THICKNESS C		DEPTH OF SOCKET MIN J	LAYING LENGTHS & COUPLING F	PART No.
		9000	9000			9000
			Ave.	Min.
1/8" SW	10.9	-	-	-	10	17	2SWHCG9K#
	10.65	-				15
1/4" SW	14.35	-	-	-	10	17	4SWHCG9K#
	14.1	-				15
3/8" SW	17.8	-	-	-	10	19	6SWHCG9K#
	17.55	-				16
1/2" SW	21.95	7.2	9.35	8.2	10	24	8SWHCG9K#
	21.7	5.6				21
3/4" SW	27.3	11.8	9.8	8.55	13	25	12SWHCG9K#
	27.05	10.3				22
1" SW	34.05	16	11.4	9.95	13	31	16SWHCG9K#
	33.8	14.5				27
1.1/4" SW	42.8	23.5	12.15	10.6	13	32	20SWHCG9K#
	42.55	22				28
1.1/2" SW	48.9	28.7	12.7	11.15	13	34	24SWHCG9K#
	48.65	27.2				30
2" SW	61.35	38.9	13.85	12.15	16	43	32SWHCG9K#
	61.1	37.4				49
2.1/2" SW	74.2	-	-	-	16	45	36SWHCG9K#
	73.8	-				40
3" SW	90.15	-	-	-	16	47	48SWHCG9K#
	89.8	-				42
4" SW	115.8	-	-	-	19	50	64SWHCG9K#
	115.45	-				45
